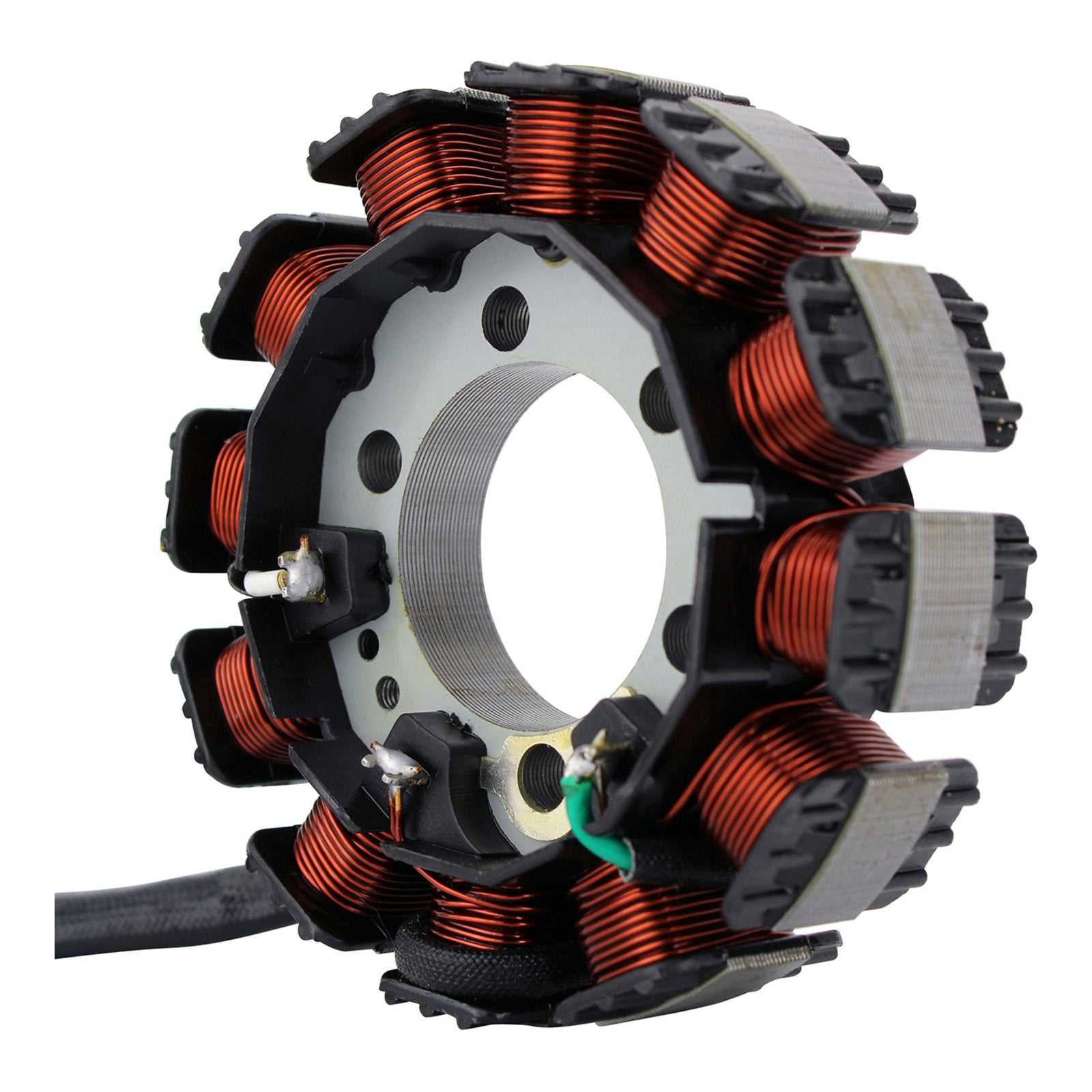

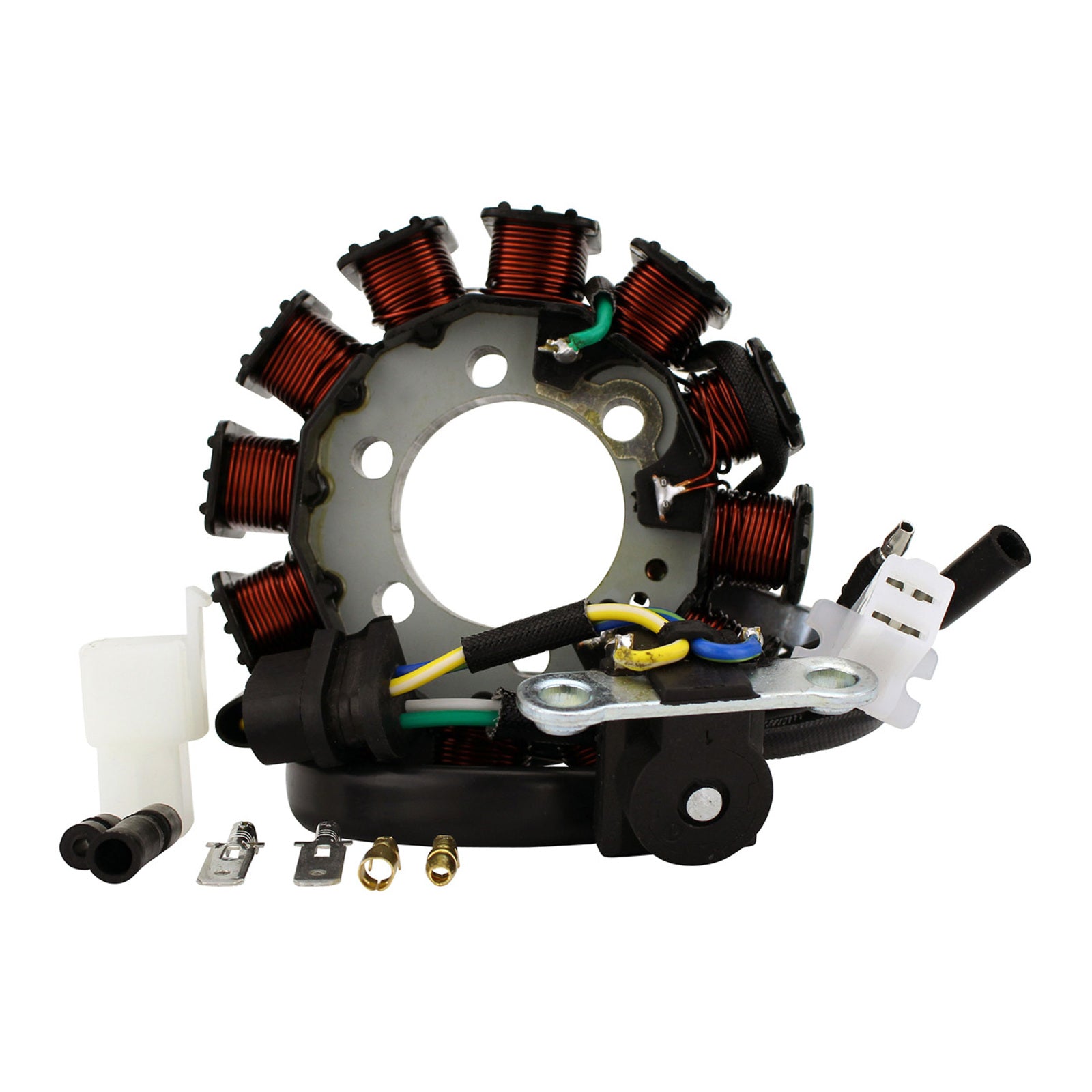

GENERATOR STATOR HON CRF110F 19-21 (RMS010-107086)
$269.99
FREE SHIPPING FOR ORDERS OVER $500
Reliable shipping
Flexible returns
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest-grade lamination materials
- Highest-grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions:
Interior diameter: 35 mm Exterior diameter: 92 mm Thickness: 10 mm Length of wires stator to grommet: 100 mm Length of wires grommet to plug: 380 mm Length of pickup coil's wire to grommet: 20 mmOther specifications:
- Number of wires: 4
- Number of plugs : 3
- Number of pins: 4
- Number of poles: 12
Wire-to-wire resistance:
Alternator: = White to Green 0.8 ohms +-20%
Pickup: = White/Yellow to Blue/Yellow 194 ohms +-20
