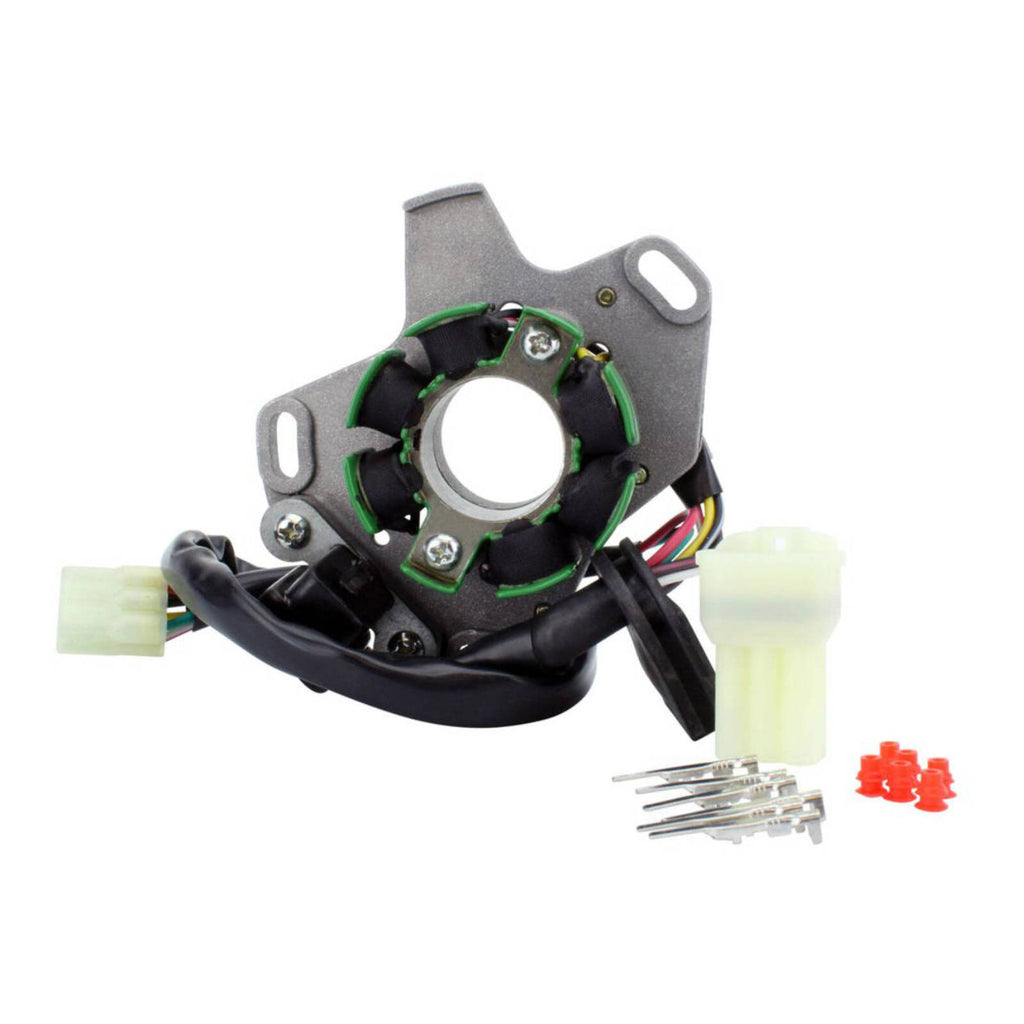

Stator for Suzuki RM 125 '05 - '08

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

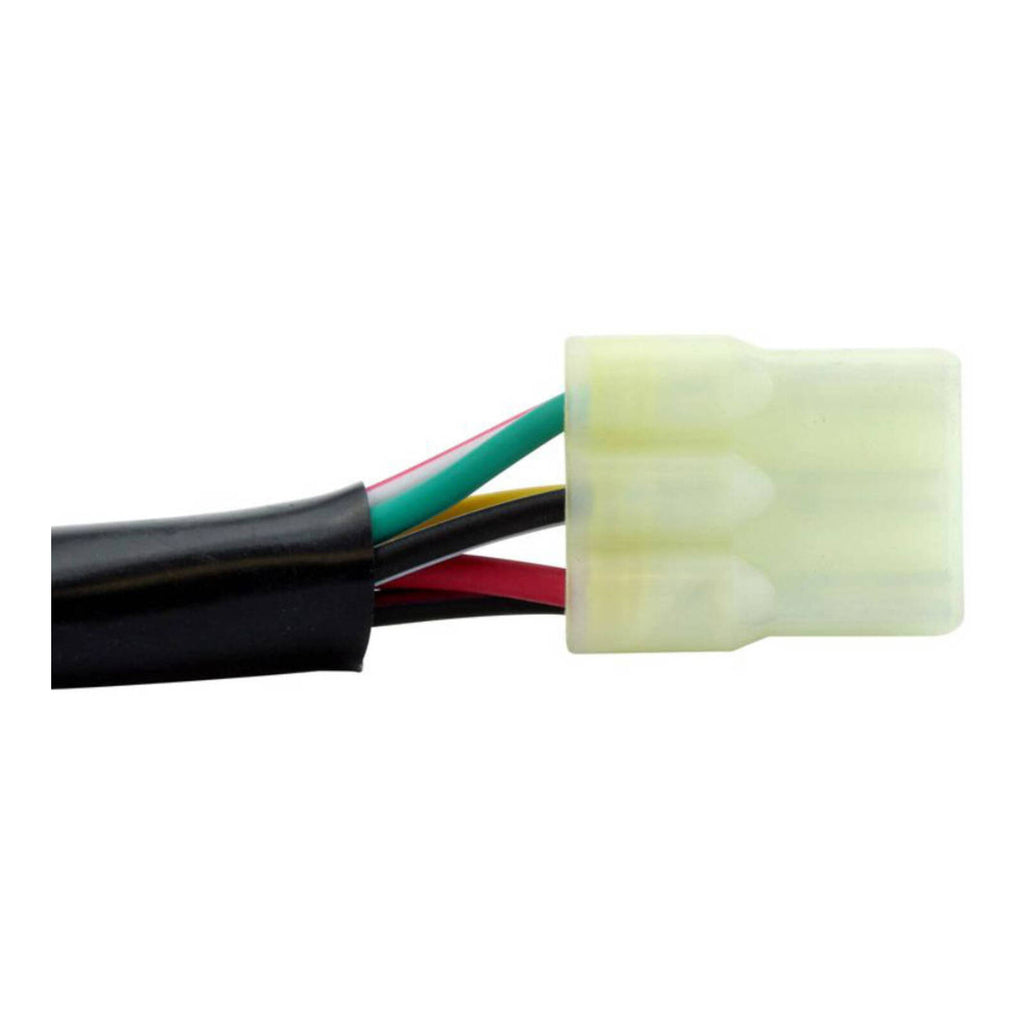

• Connector included
• Rubber grommet included
• All products shipped are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:

• Interior diameter: 28 mm
• Exterior diameter: 58 mm
• Thickness: 12 mm
• Length of wires stator to grommet: 15 mm
• Length of wires grommet to plug: 530 mm

Other Specifications:

• Number of wires: 6
• Number of plugs: 1
• Number of pins: 6

Wire to Wire Resistance:

• Alternator: Yellow to Black/White = 0.4 ohms ±20%
• Pickup: Red to Green = 100 ohms ±20%
• Source: Black/Red to Red/White = 32 ohms ±20%
