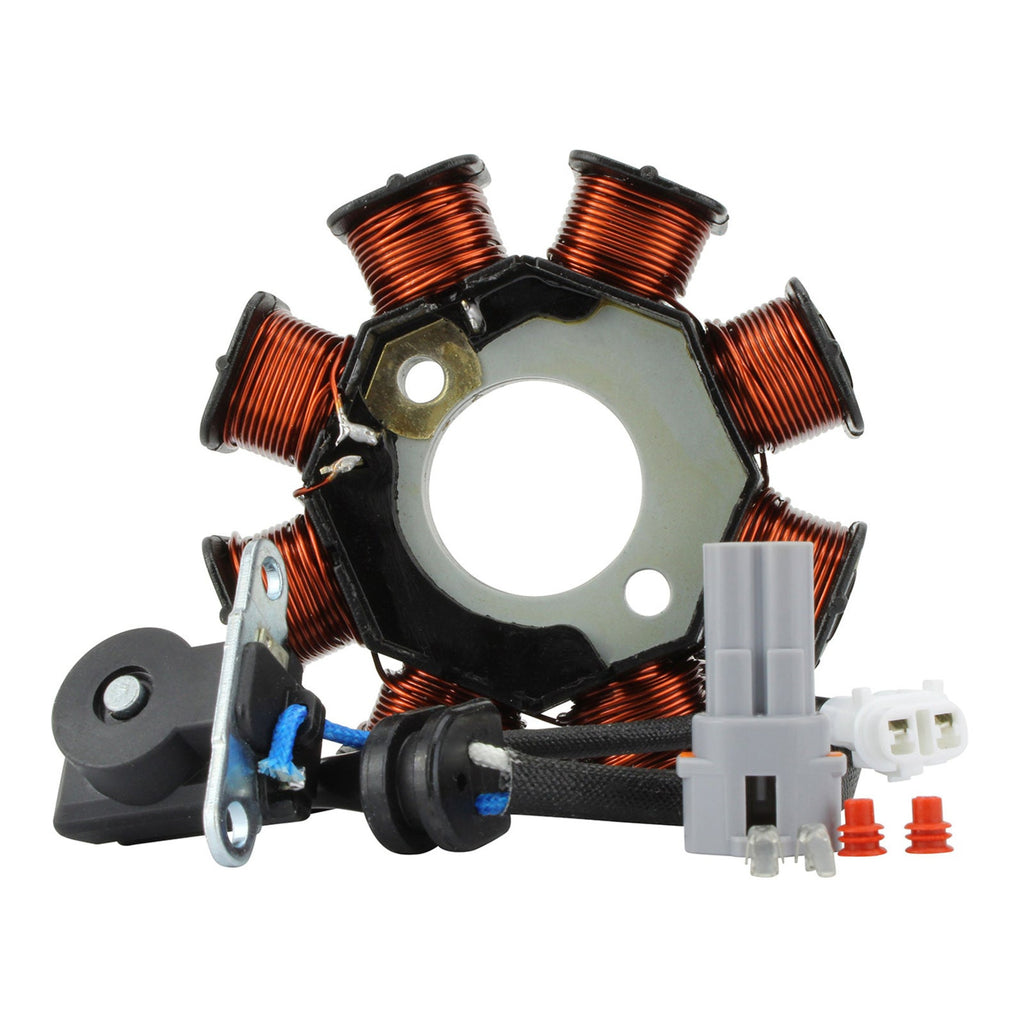

GENERATOR STATOR KAW KLX110 10-21 (RMS010-107078)
$319.99
FREE SHIPPING FOR ORDERS OVER $500
Reliable shipping
Flexible returns
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest-grade lamination materials
- Highest-grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions:
Interior diameter: 29 mm Exterior diameter: 88 mm Thickness: 10 mm Length of wires stator to grommet: 150 mm Length of wires grommet to plug: 150 mm Length of pickup coil's wire to grommet: 120 mmOther specifications:
- Number of wires: 2
- Number of plugs: 1
- Number of pins: 2
- Number of poles: 8
Wire-to-wire resistance:
- Alternator: White to Ground = 1.2 ohms +-20%
- Pickup: Blue/yellow to Ground = 118 ohms +-20%
